Briggs & Stratton 100000 - 19Z999 Series 161400 to 161499 OEM Parts Diagram for ELECTRIC STARTER

#	Description	Price	Qty
53A	Screw-Hex. Hd. 810069 Ships in 1 to 2 days	~~$5.59~~ $5.14	Add
309	Motor-Starter (12 Volt) 491334	Unavailable
310	Screw, Hex Flange H (For 4-1/2in. Housing Length) 94169	Unavailable
310	Screw, Hex Flange H (For 4-3/8in. Housing Length) 94004	Unavailable
311	Brush Set (For 4-9/16in. Housing Length) 490311	Unavailable
423	Screw-Sem 810066	Unavailable
510	Drive-Starter 491336	Unavailable
513	Clutch-Drive 491338	Unavailable
544	Armature-Starter 492357	Unavailable
727	Guard-Flywheel 492698	Unavailable
783	Gear-Pinion 695708 Ships in 1 to 2 days	~~$6.39~~ $5.25	Add
801	Drive Assy.-End Cap 491339	Unavailable
802	Head, Brush End Kit \| (For 4-1/2in.or 4-9/16in. Housing Length) 490310	Unavailable
802	Housing-Starter \| (For 4-3/8in. or 4-9/16in. Housing Length) 494205 Ships in 1 to 2 days	~~$58.99~~ $54.33	Add
803	Housing-Starter (For 4-9/16in. Housing Length) \| (For 4-1/2in. or 4-9/16in. Housing Length) 398892	Unavailable
803	Cap-End (For 4-3/8in. Housing Length) 494988	Unavailable
896	Pin, Spiral (Copper) 94288 Ships in 1 to 2 days	~~$3.69~~ $3.39	Add
1003	Spring-Brush \| (For 4-1/2in. or 4-9/16in. Housing Length) 490316	Unavailable

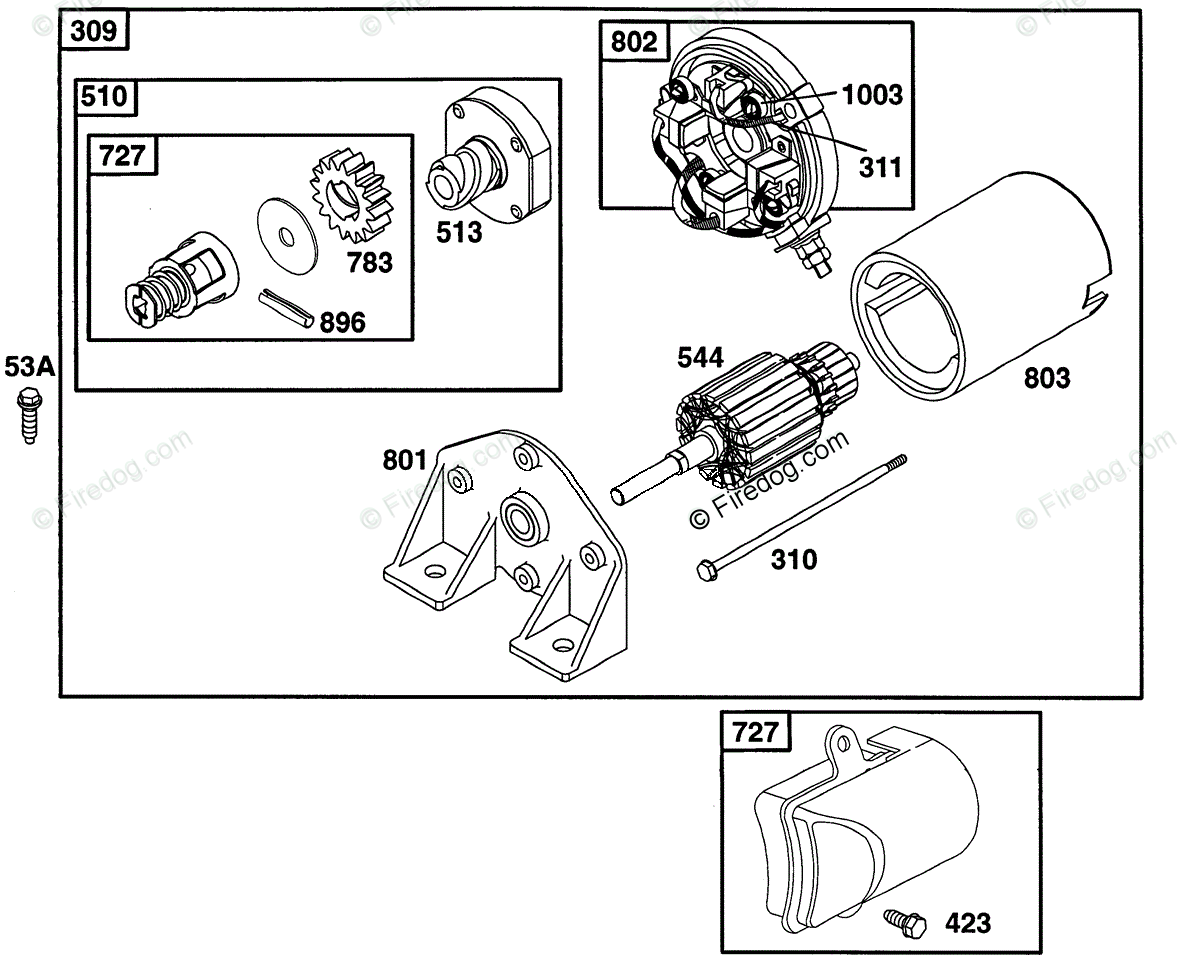

Briggs & Stratton 161432-0016-01 ELECTRIC STARTER Diagram
