Briggs & Stratton 100000 - 19Z999 Series 171400 to 171499 OEM Parts Diagram for Fuel Tank

#	Description	Price	Qty
116B	Seal-O 280203 Ships in 1 to 2 days	~~$4.09~~ $3.76	Add
13A	Stud, Hex Washer He (3 5/16in. Long) 94926	Unavailable
13A	Stud, Hex Washer He (3 15/16in. Long) 94776	Unavailable
180	Tank-Fuel (4 Quart) 290816 Ships in 1 to 2 days	~~$102.49~~ $94.39	Add
181	Cap-Fuel Tank 791545 Ships in 1 to 2 days	~~$9.19~~ $7.55	Add
182A	Bracket-Fuel Tank 694592 Ships in 1 to 2 days	~~$13.19~~ $12.14	Add
182B	Bracket-Fuel Tank 222758 Ships in 1 to 2 days	~~$48.49~~ $44.66	Add
182	Bracket-Fuel Tank (Upper) 495664	Unavailable
186	Connector, Fuel 67218 Ships in 1 to 2 days	~~$5.79~~ $4.75	Add
187	Line-Fuel 791766 Ships in 1 to 2 days	~~$6.79~~ $5.58	Add
188	Screw, Sem Hex Head 94627 Ships in 1 to 2 days	~~$4.39~~ $4.04	Add
198	VALVE-FUEL SHUT OFF(M 592840 Ships in 1 to 2 days	~~$32.49~~ $29.92	Add
199	VALVE-FUEL SHUT OFF(M 592840 Ships in 1 to 2 days	~~$32.49~~ $29.92	Add
240	Filter, Fuel 298090 Ships in 1 to 2 days	~~$4.69~~ $3.85	Add
354	Nut, Hex Flange 94726 Ships in 1 to 2 days	~~$5.79~~ $5.33	Add
601	Clamp, Hose (Red) 95162 Ships in 1 to 2 days	~~$2.69~~ $2.21	Add
917	Valve Handle-Fuel Shut-Off 223271 Ships in 1 to 2 days	~~$5.59~~ $5.14	Add
957	Cap, Tank (Plastic) 493988 Ships in 1 to 2 days	~~$9.49~~ $7.79	Add
958	Valve-Fuel Shut Off 698182 Ships in 1 to 2 days	~~$7.59~~ $6.23	Add
961	Screw, Tapping Hex 94095	Unavailable
972	Tank-Fuel 691993 Ships in 1 to 2 days	~~$144.99~~ $133.54	Add

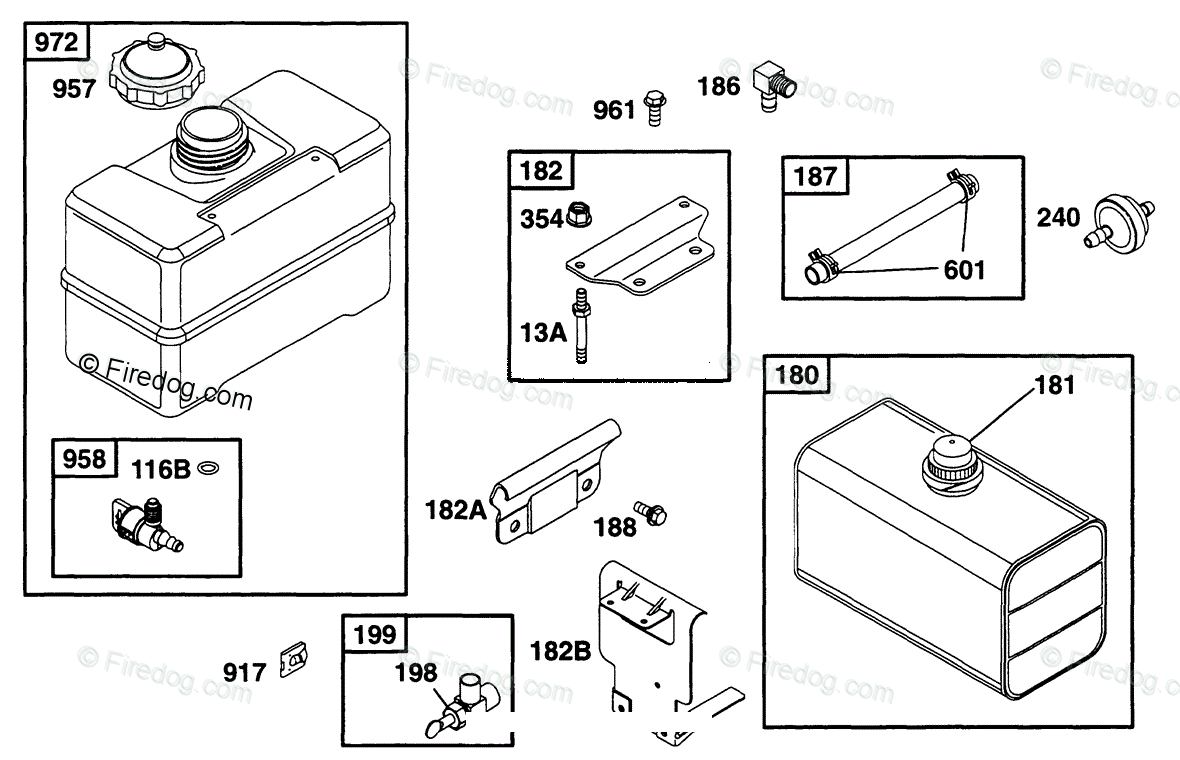

Briggs & Stratton 171437-0304-01 Fuel Tank Diagram
