Briggs & Stratton 100000 - 19Z999 Series 171400 to 171499 OEM Parts Diagram for Rewind Assy

#	Description	Price	Qty
55	Housing-Rew Str 393576	Unavailable
56	Pulley-Starter (Includes 63in. Rope) 295871 Ships in 1 to 2 days	~~$15.29~~ $12.56	Add
57	Spring-Rewind Starter 490179 Ships in 1 to 2 days	~~$12.39~~ $10.18	Add
58	Rope-Starter 695002 Ships in 1 to 2 days	~~$6.89~~ $5.66	Add
58	Rope-Starter 692188 Ships in 1 to 2 days	~~$6.69~~ $5.49	Add
59	Grip-Starter Rope 490652 Ships in 1 to 2 days	~~$5.69~~ $4.67	Add
60	Handle-Starter Rope 490652 Ships in 1 to 2 days	~~$5.69~~ $4.67	Add
64	Adapter-Spring 281204 Ships in 1 to 2 days	~~$8.39~~ $7.72	Add
65	Screw, Machine Hex 94686 Ships in 1 to 2 days	~~$2.69~~ $2.21	Add
66	Clutch-Starter \| (Uses Rubber Coated Retainer Washer-Ref. 71) 399671 Ships in 1 to 2 days	~~$29.49~~ $24.23	Add
67	Housing-Starter Clutch 394897 Ships in 1 to 2 days	~~$27.49~~ $25.32	Add
68	Ball-Clutch 63770	Unavailable
70	Ratchet-Clutch \| (For engine W/Ring Gear on FW equipped for Elec Start) 691945 Ships in 1 to 2 days	~~$12.99~~ $11.96	Add
71	Cover-Ratchet 691359 Ships in 1 to 2 days	~~$7.19~~ $6.62	Add
228	Screw, Hex Wash Hd 94680 Ships in 1 to 2 days	~~$2.89~~ $2.37	Add
373	Nut, Hex Mach 92987 Ships in 1 to 2 days	~~$3.19~~ $2.62	Add
608	Starter-Rewind 693900 In Stock	~~$115.43~~ $115.43	Add
655	Anchor-Rewind Spring \| (For Stamped Rewind Housing) 691734	Unavailable
1016	Spacer=rewind 490817 Ships in 1 to 2 days	~~$6.79~~ $6.25	Add

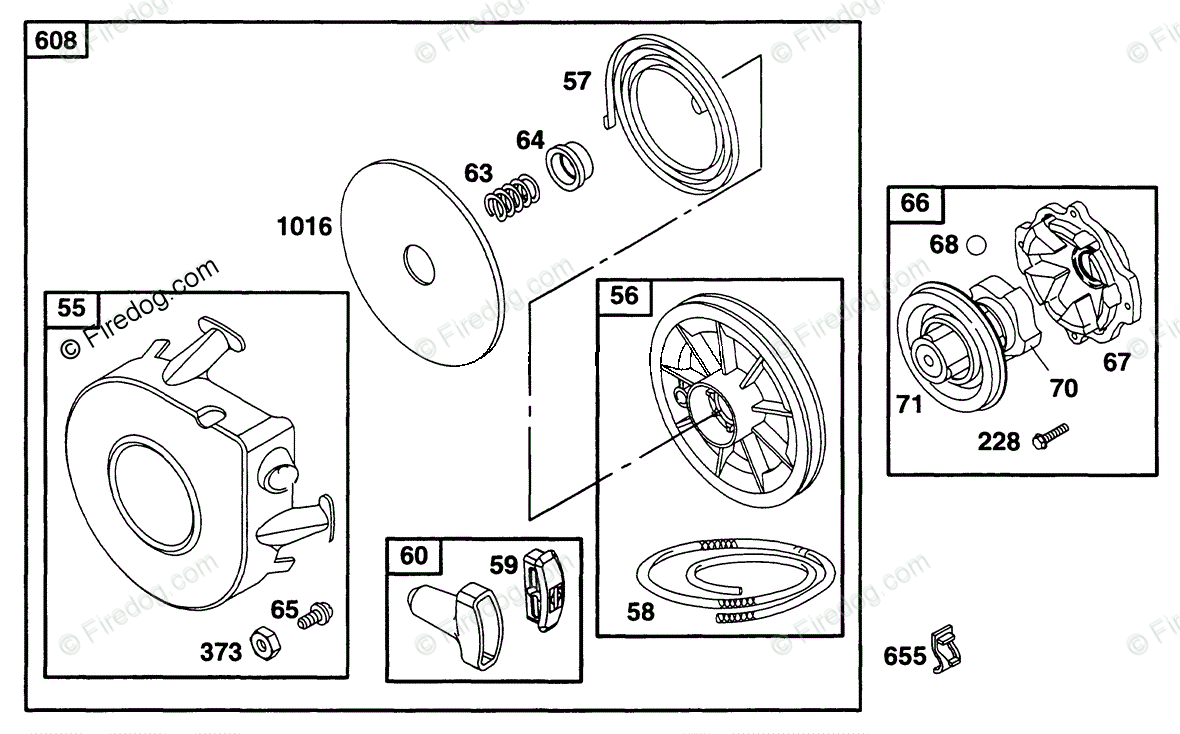

Briggs & Stratton 171432-1090-99 Rewind Assy Diagram
