Briggs & Stratton 100000 - 19Z999 Series 171400 to 171499 OEM Parts Diagram for Muffler Grp

#	Description	Price	Qty
81	Lock, Screw Head (3/8in. Dia. Bolt Holes) 222263 Ships in 1 to 2 days	~~$4.29~~ $3.95	Add
298	Locknut, Muffler/El 261409 Ships in 1 to 2 days	~~$3.49~~ $2.86	Add
300B	Muffler 393010S Ships in 1 to 2 days	~~$18.49~~ $15.19	Add
300	Muffler-Exhaust 494221	Unavailable
300A	Muffler 692304	Unavailable
300C	Muffler-Exhaust 494222	Unavailable
346	Screw, Tapping Hex 94896 Ships in 1 to 2 days	~~$2.89~~ $2.37	Add
346A	Screw-Hex 93606 Ships in 1 to 2 days	~~$2.99~~ $2.75	Add
447	Screw, Hex Head Tap 93801 Ships in 1 to 2 days	~~$2.99~~ $2.75	Add
613	Screw, Shoulder Muf 94042 Ships in 1 to 2 days	~~$6.09~~ $5.61	Add
613A	Screw, Shoulder Muf 94054 Ships in 1 to 2 days	~~$6.29~~ $5.79	Add
676A	Deflector-Muff (Direct Outlet) 395700 Ships in 1 to 2 days	~~$11.99~~ $11.04	Add
676	Deflector-Muffler 796956 Ships in 1 to 2 days	~~$7.79~~ $7.17	Add
725	Shield-Muffler 223645	Unavailable
832A	Guard-Muffler 494868 Ships in 1 to 2 days	~~$53.99~~ $49.72	Add
832	Guard-Muffler 691988 Ships in 1 to 2 days	~~$40.49~~ $37.29	Add
836	Screw, Machine Hex 94905 Ships in 1 to 2 days	~~$2.99~~ $2.75	Add
883	Gasket-Muffler \| Included in Valve Overhaul Gasket Set-Part No. 498533. Included in Gasket Set-Part No. 299577 272309 Ships in 1 to 2 days	~~$4.29~~ $3.52	Add
981	Bracket-Muffler Guard 690425 Ships in 1 to 2 days	~~$27.99~~ $25.78	Add
994	Spark Arrester 399541 Ships in 1 to 2 days	~~$21.49~~ $19.79	Add

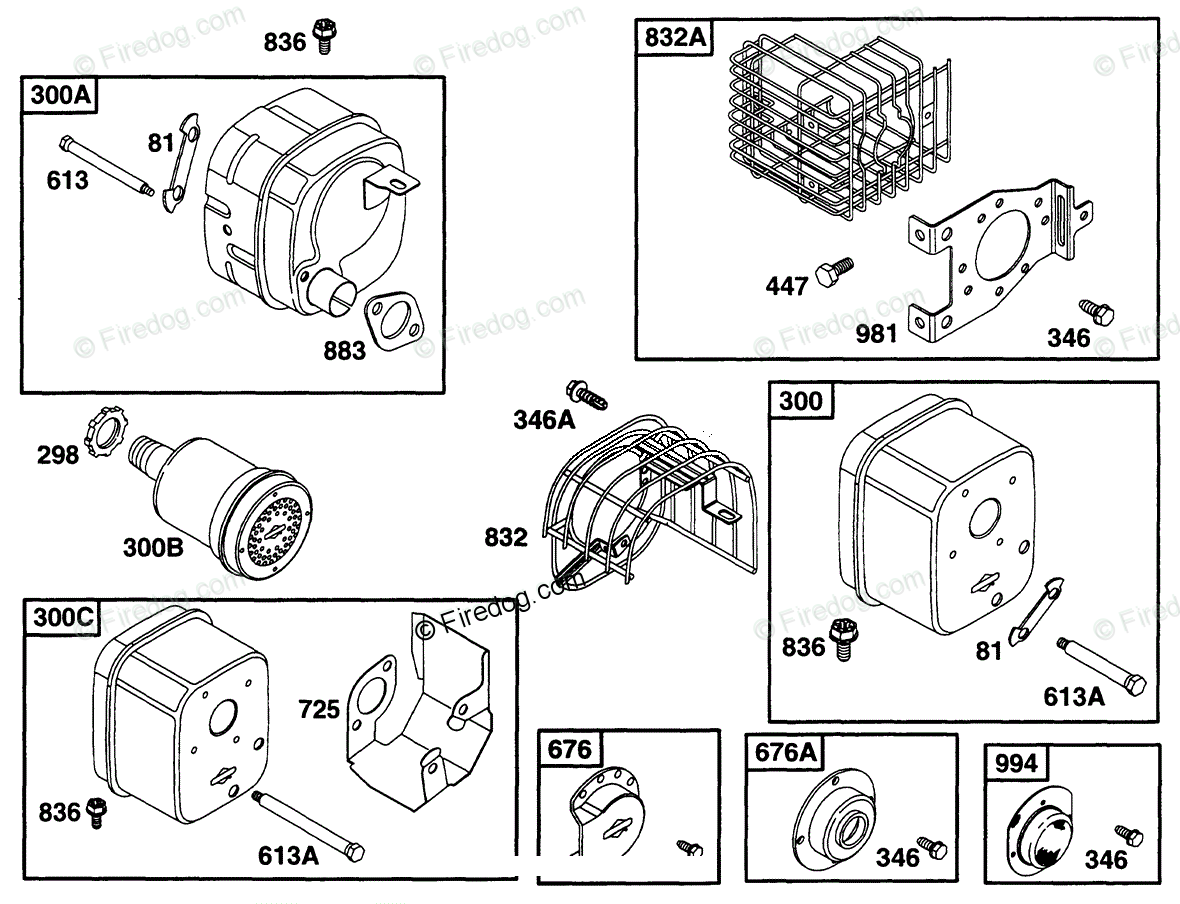

Briggs & Stratton 171432-1090-99 Muffler Grp Diagram
