Briggs & Stratton 100000 - 19Z999 Series 171400 to 171499 OEM Parts Diagram for Blower Hsg, Flywheel

#	Description	Price	Qty
23A	Flywheel/Gear Assy (For Engines With Alternator) 391983	Unavailable
37	Guard-Flywheel 222475	Unavailable
38	Screw, Machine Hex 94811 Ships in 1 to 2 days	~~$2.99~~ $2.75	Add
73	Screen-Rotating 691754 Ships in 1 to 2 days	~~$23.49~~ $21.63	Add
74	Screw, Shoulder Hex 94928 Ships in 1 to 2 days	~~$2.99~~ $2.75	Add
75	Washer, Flat (5/8in. Hole) 224061 Ships in 1 to 2 days	~~$3.49~~ $2.86	Add
200	Guide-Air 691170 Ships in 1 to 2 days	~~$11.29~~ $10.39	Add
304	Housing-Blower 491596 Ships in 1 to 2 days	~~$102.49~~ $94.39	Add
305	Screw, Machine Hex (1/2in. Long) 94786 Ships in 1 to 2 days	~~$4.89~~ $4.01	Add
325	Pulley-Rope Starter 691903 Ships in 1 to 2 days	~~$45.49~~ $41.89	Add
363	Puller-Flywheel (Optional Accessory) (2-13/16 Bolt Spacing) 19203 Ships in 1 to 2 days	~~$21.74~~ $17.88	Add
423	Screw, Shoulder Hex 94625 Ships in 1 to 2 days	~~$2.99~~ $2.75	Add
575	Switch, Rotary Stop (Mech. Gov.) 396691 Ships in 1 to 2 days	~~$19.69~~ $16.18	Add
668	Spacer 225124	Unavailable
726	Gear-Ring \| Includes Mtg. Parts 696537 Ships in 1 to 2 days	~~$55.99~~ $46.01	Add
727	Cover-Str Drive 395405	Unavailable
930	Guard-Rewind Starter 280685 Ships in 1 to 2 days	~~$20.49~~ $18.87	Add

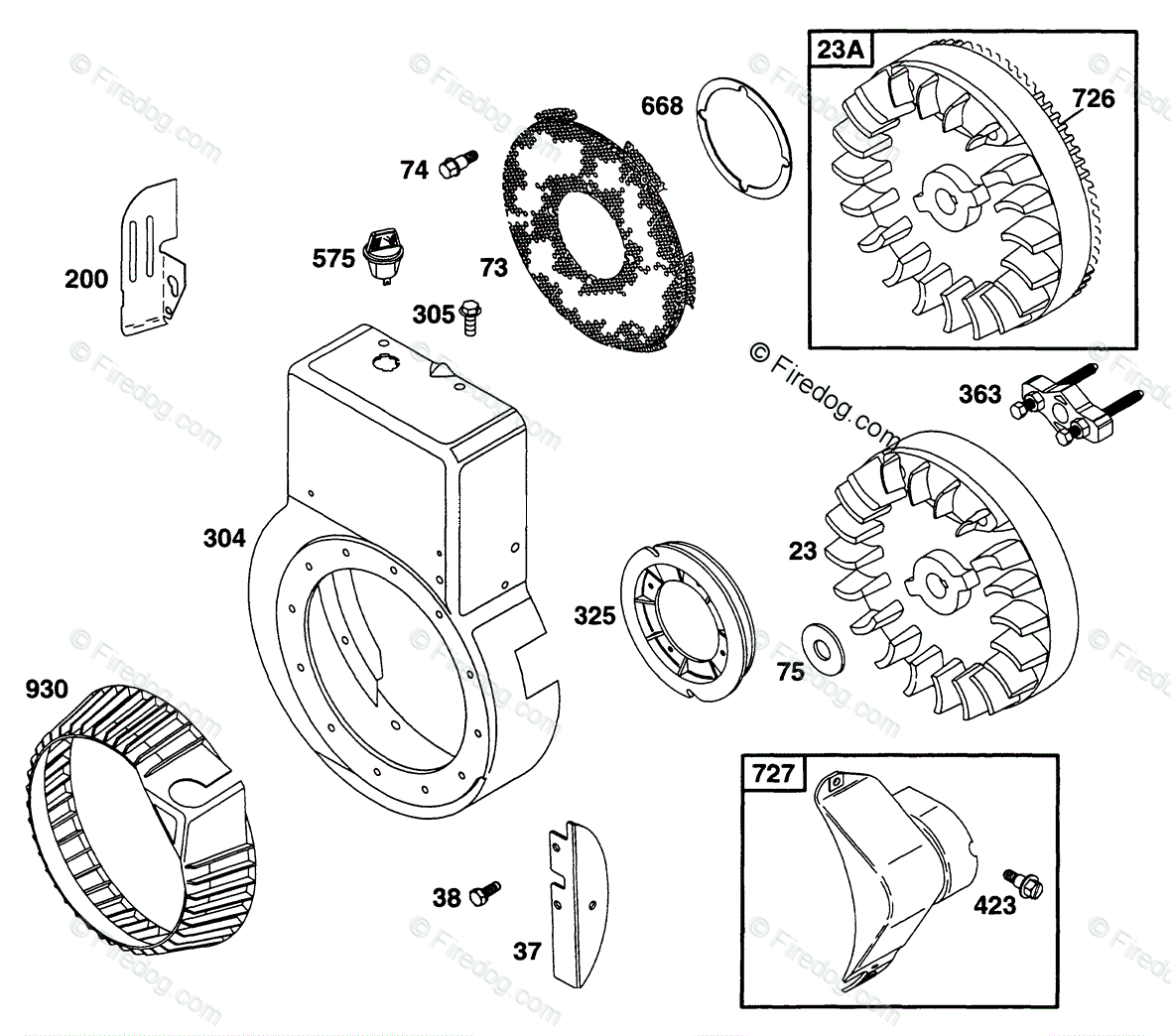

Briggs & Stratton 171432-1090-99 Blower Hsg, Flywheel Diagram
