1. Catalog
  2. Briggs & Stratton
  3. 100000 - 19Z999 Series
  4. 170400 To 170499
  5. 170432-2354-01

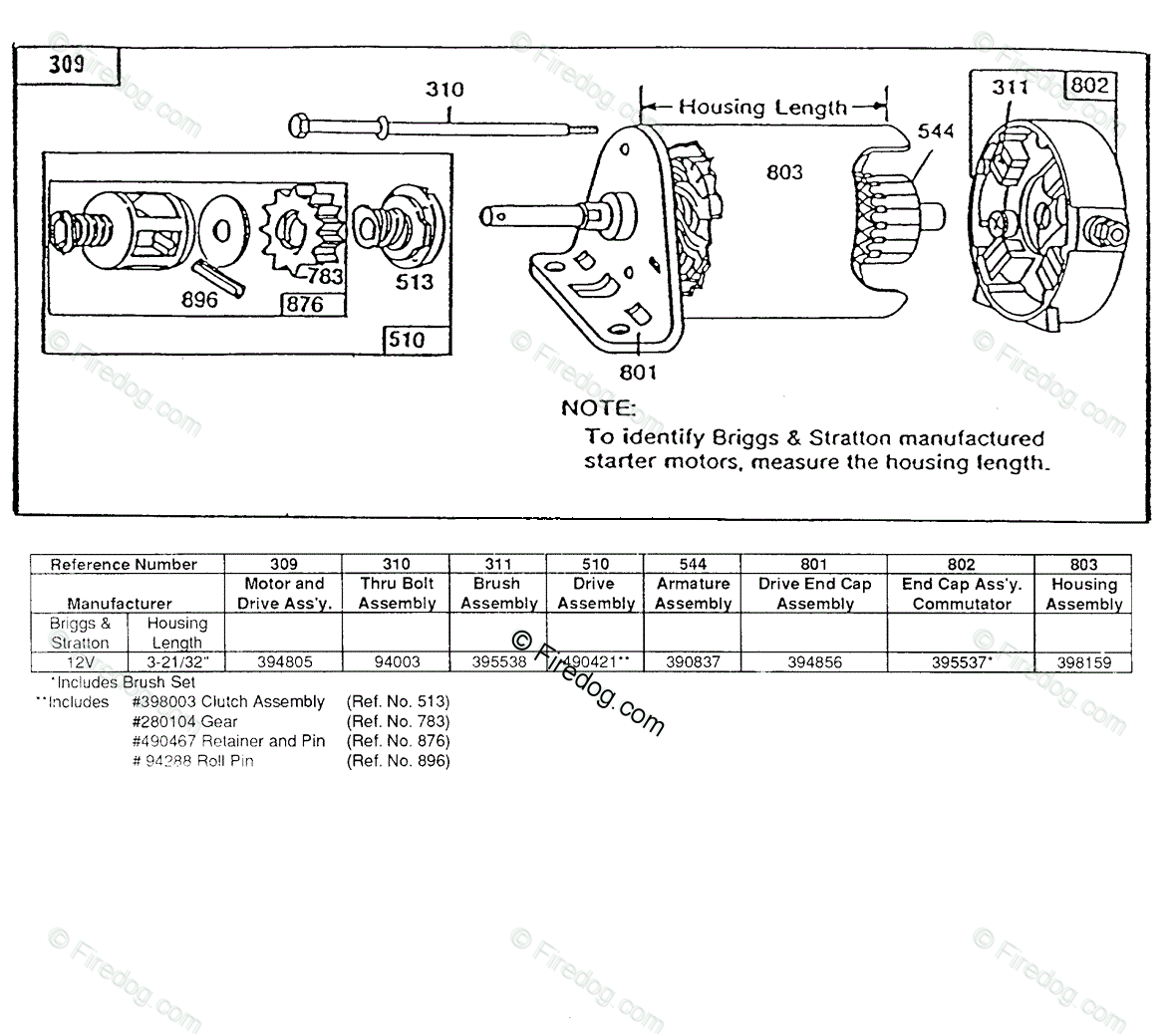

  6. Electric Start And Chart

Check Availability

# Description Price Qty
309 Motor-Starter
396505 		Unavailable
309 Motor-Starter
497595
Ships in 1 to 2 days
$119.99
$94.27
Add
310 Screw, Hex Flange H (For 3-5/8in. Housing Length)
94003
Ships in 1 to 2 days
$3.59
$3.30
Add
310 Screw
690318
Ships in 1 to 2 days
$5.19
$4.78
Add
311 Brush Set (110v 3-1/2in. Housing Length)
393612 		Unavailable
311 Brush Set | (For 3-5/8in. or 4-3/8in. Housing Length)
395538 		Unavailable
510 Drive-Starter | Includes #398003 Clutch Assembly (Ref. No. 513) #280104 Gear (Ref. No. 783) #490467 Retainer and Pin (Ref. No. 876) # 94288 Roll Pin (Ref. No. 896) (For 3-21/32in. or 4-9/16in. Housing Length)
696540
Ships in 1 to 2 days
$28.99
$23.82
Add
510 Drive-Starter | Includes #398003 Clutch Assembly (Ref. No. 513) #280104 Gear (Ref. No. 783) #391462 Retainer and Pin (Ref. No. 773) # 94192 Roll Pin (Ref. No. 896)
696535
Ships in 1 to 2 days
$29.99
$24.64
Add
544 Armature-Str (For 3-5/8in. Housing Length)
390837
Ships in 1 to 2 days
$119.99
$110.51
Add
544 Motor-Starter
396505 		Unavailable
801 Drive End Cap Assembly Briggs Stratton 120V (3-1/2in.) Housing Length
393389 		Unavailable
801 Cap-Drive
691283
Ships in 1 to 2 days
$62.99
$58.01
Add
802 Cap-End Bs 110V (3-1/2in. Housing Length) | Used After Code Date 87033100
491192 		Unavailable
802 Cap-End (For 3-5/8in. Housing Length) | Includes Brush Set
395537
Ships in 1 to 2 days
$44.49
$36.56
Add
802 Cap-End (Bs 110V, 3-1/2in. Housing Length) | Used Before Code Date 87040100
393833 		Unavailable
803 Housing-Starter Bs 110V (3-1/2in. Housing Length)
491008 		Unavailable
803 Housing-Starter
394254
Ships in 1 to 2 days
$49.49
$45.58
Add
803 Housing-Starter (For 3-5/8in. Housing Length)
398159
Ships in 1 to 2 days
$64.99
$59.86
Add
