Briggs & Stratton 100000 - 19Z999 Series 161400 to 161499 OEM Parts Diagram for Gear Reducer Assy

#	Description	Price	Qty
8	Breather Assembly 491237	Unavailable
34	Valve-Intake 491911	Unavailable
79	Case-Gear Reduction 690614 Ships in 1 to 2 days	~~$72.99~~ $67.22	Add
80	Gasket-Gear Case To Crankcase Cover 27884 Ships in 1 to 2 days	~~$6.99~~ $6.43	Add
81	Lock-Screw Head 220234 Ships in 1 to 2 days	~~$3.89~~ $3.58	Add
82	Screw-Hex. 92502	Unavailable
83	Shaft-Auxiliary Drive 690387 Ships in 1 to 2 days	~~$319.99~~ $294.72	Add
84	Plug-Breather 94685 Ships in 1 to 2 days	~~$4.49~~ $4.13	Add
85	Screw, Hex Head Cap (2in. Long) 91386 Ships in 1 to 2 days	~~$2.89~~ $2.66	Add
87	Seal-Oil 391086 Ships in 1 to 2 days	~~$5.49~~ $4.51	Add
88	Gasket-Gear Cover 27328 Ships in 1 to 2 days	~~$8.39~~ $7.72	Add
89	Plug, Pipe (1/8in.) 91488 Ships in 1 to 2 days	~~$4.09~~ $3.76	Add
189	Lockwasher, Zinc Pl 90366 Ships in 1 to 2 days	~~$2.79~~ $2.57	Add
411	Plug, Pipe (Flush) (1/4-18 Nptf) 93448 Ships in 1 to 2 days	~~$4.09~~ $3.76	Add

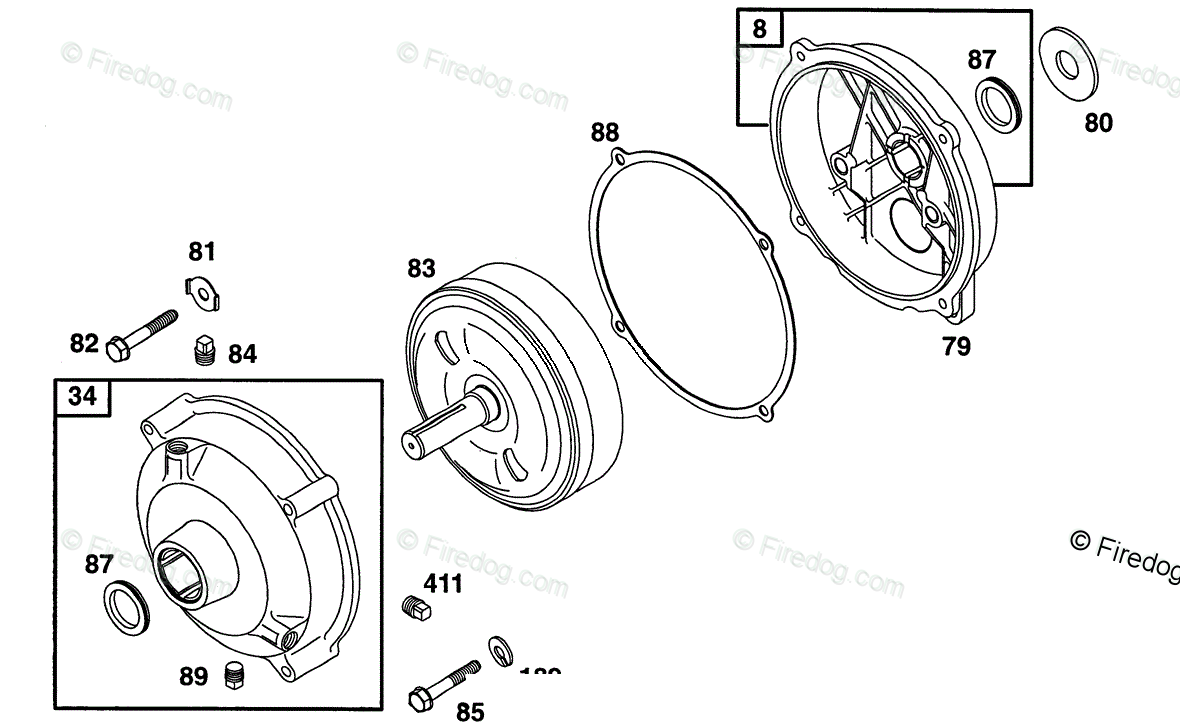

Briggs & Stratton 161432-0029-01 Gear Reducer Assy Diagram
