1. Catalog
  2. Briggs & Stratton
  3. 100000 - 19Z999 Series
  4. 161400 To 161499
  5. 161432-0029-01
  6. Carburetor Assy

Check Availability

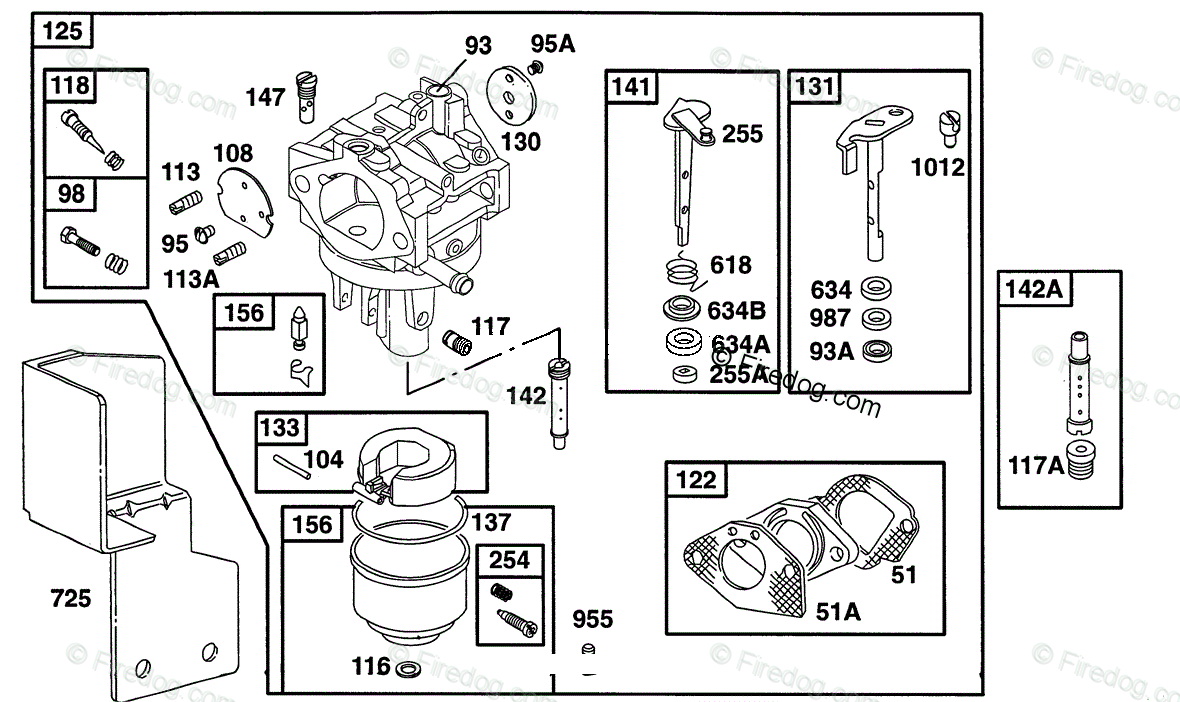

# Description Price Qty
51A Gasket-Intake | Included in Valve Overhaul Kit-Part No. 495771. Included in Gasket Set-Part No. 491999
272069
Ships in 1 to 2 days
$3.29
$3.03
Add
51 Gasket-Intake | Included in Valve Overhaul Kit-Part No. 495771. Included in Gasket Set-Part No. 491999
272043
Ships in 1 to 2 days
$3.49
$3.21
Add
95 Screw-Throttle Choke Valve Mtg.
94457
Ships in 1 to 2 days
$2.89
$2.66
Add
634B Washer (Sold In Kit Only) | Included in Carburetor Kit-Part No. 494839. Included in Carburetor Kit-Part No. 492287
224214 		Unavailable
93A Bushing-Throttle Shaft (Lower) | Included in Carburetor Kit-Part No. 494839. Included in Carburetor Kit-Part No. 492287
280927 		Unavailable
93 Bushing-Throttle Shaft (Upper) | Included in Carburetor Kit-Part No. 494839. Included in Carburetor Kit-Part No. 492287
280926
Ships in 1 to 2 days
$6.19
$5.70
Add
95A Screw-Throttle Valve
94466
Ships in 1 to 2 days
$3.19
$2.93
Add
98 Screw-Idle Speed | Used After Code Date 90091000
494690
Ships in 1 to 2 days
$5.19
$4.78
Add
98 Screw-Idle Speed | Used Before Code Date 90091100
492276
Ships in 1 to 2 days
$4.99
$4.59
Add
104 Pin-Float Hinge | Included in Carburetor Kit-Part No. 494839. Included in Carburetor Kit-Part No. 492287
231652
Ships in 1 to 2 days
$5.59
$5.14
Add
108 Valve-Choke
224219 		Unavailable
113 Nozzle-Carburetor | Used Before Code Date 90091100
231646 		Unavailable
113 Nozzle-Carburetor | Used After Code Date 90091000
231647
Ships in 1 to 2 days
$18.69
$17.21
Add
113A Nozzle-Well Jet | Included in Carburetor Kit-Part No. 494839. Included in Carburetor Kit-Part No. 492287
231656 		Unavailable
117 Jet-Main (High Altitude)
231766 		Unavailable
117 Jet-Main | Included in Carburetor Kit-Part No. 494839
231765
Ships in 1 to 2 days
$12.69
$11.68
Add
117A Jet-Main (High Altitude)
231667
Ships in 1 to 2 days
$12.69
$11.68
Add
118 Valve-Idle Adjust | Used Before Code Date 90091100
492277
Ships in 1 to 2 days
$12.69
$11.68
Add
118 Valve-Idle Adjustment | Used After Code Date 90091000
494923
Ships in 1 to 2 days
$14.39
$13.25
Add
122 Spacer-Carburetor | Included in Valve Overhaul Kit-Part No. 495771
491586 		Unavailable
125 Carburetor
491912
Ships in 1 to 2 days
$207.49
$191.11
Add
130 Valve-Throttle | Used Before Code Date 90091100
224221 		Unavailable
130 Valve-Throttle | Used After Code Date 90091000
224485
Ships in 1 to 2 days
$19.29
$17.76
Add
131 Shaft-Throttle
492284
Ships in 1 to 2 days
$26.49
$24.39
Add
133 Float-Carburetor
492283
Ships in 1 to 2 days
$28.99
$23.82
Add
141 Shaft-Choke
492285
Ships in 1 to 2 days
$29.99
$27.62
Add
142 Nozzle-Carburetor (Used With Side Jet Carburetor) | Included in Carburetor Kit-Part No. 494839
231763 		Unavailable
142A Nozzle-Carburetor (Used With Bottom Jet Carburetor) | Included in Carburetor Kit-Part No. 492287
492324
Ships in 1 to 2 days
$32.49
$29.92
Add
147 Jet-Pilot | Used Before Code Date 90091100
231653 		Unavailable
147 Jet-Pilot | Used After Code Date 90091000
231764
Ships in 1 to 2 days
$8.59
$7.91
Add
254 Drain-Carburetor Bowl
492274
Ships in 1 to 2 days
$7.79
$7.17
Add
255 Retainer-Choke Shaft (Upper) | Included in Carburetor Kit-Part No. 494839. Included in Carburetor Kit-Part No. 492287
280958 		Unavailable
255A Retainer-Choke Shaft (Lower) | Included in Carburetor Kit-Part No. 494839. Included in Carburetor Kit-Part No. 492287
280910 		Unavailable
618 Spring-Choke Shaft
262560 		Unavailable
634 Washer (Sold In Kit Only) | Included in Carburetor Kit-Part No. 494839. Included in Carburetor Kit-Part No. 492287. Included in Carburetor Gasket Set-Part No. 492281
224214 		Unavailable
634A Washer-Choke Shaft | Included in Carburetor Kit-Part No. 494839. Included in Carburetor Kit-Part No. 492287. Included in Carburetor Gasket Set-Part No. 492281
272184
Ships in 1 to 2 days
$5.69
$5.24
Add
725 Shield-Heat
224004 		Unavailable
955 Screw-Bowl Mtg. | Used After Code Date 90091000
94460
Ships in 1 to 2 days
$6.89
$6.34
Add
955 Screw-Bowl Mtg. | Used Before Code Date 90091100
94459 		Unavailable
987 Seal-Throttle Shaft | Included in Carburetor Kit-Part No. 494839. Included in Carburetor Kit-Part No. 492287. Included in Carburetor Gasket Set-Part No. 492281
492172
Ships in 1 to 2 days
$4.79
$4.41
Add
1012 Retainer-Throttle Link
280861
Ships in 1 to 2 days
$4.19
$3.86
Add
