1. Catalog
  2. Briggs & Stratton
  3. 100000 - 19Z999 Series
  4. 146400 To 146499
  5. 146402-0146-99

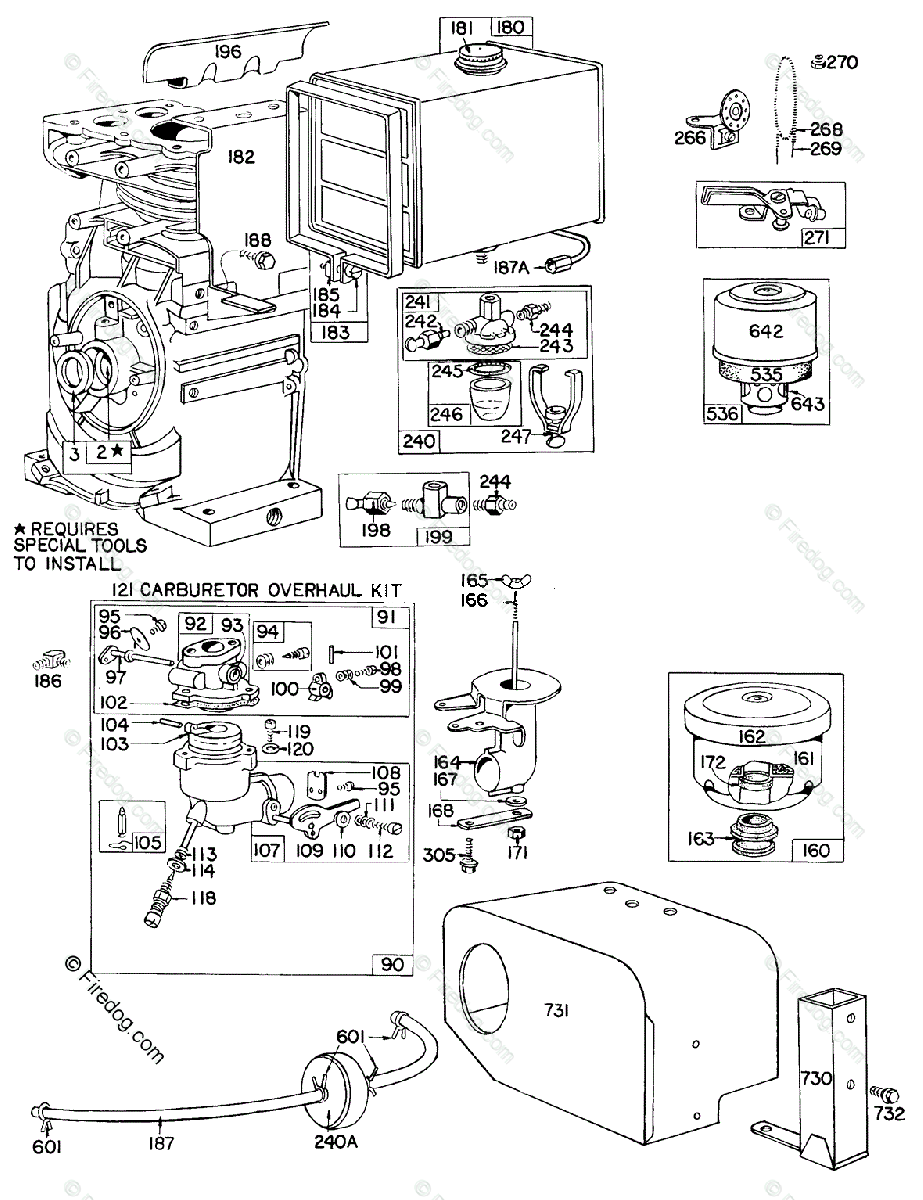

  6. Carb Assy,Fuel Tank, A/C

Check Availability

# Description Price Qty
2 Bushing/Seal Kit | Requires special tools for installation.
295962
Ships in 1 to 2 days
$21.49
$19.79
Add
3 Seal-Oil
294606S
Ships in 1 to 2 days
$7.39
$6.07
Add
90 Carburetor Assembly (Manual Choke)
299169
Ships in 1 to 2 days
$192.49
$186.15
Add
91 Body Assy.-Upper Carburetor
390404
Ships in 1 to 2 days
$92.99
$85.64
Add
92 Body-Upper Carburetor
295858
Ships in 1 to 2 days
$92.99
$85.64
Add
93 Bushing-Throttle Shaft
691769
Ships in 1 to 2 days
$6.89
$6.34
Add
94 Valve-Idle Mixture | Included in Carburetor Overhaul Kit-Part No. 295938
292681
Ships in 1 to 2 days
$9.19
$7.55
Add
95 Screw-Throttle Valve Mounting Sem
93038
Ships in 1 to 2 days
$2.89
$2.37
Add
96 Valve-Throttle
62940
Ships in 1 to 2 days
$6.89
$6.34
Add
97 Shaft-Throttle
298826
Ships in 1 to 2 days
$24.35
$22.43
Add
98 Screw, Machine Fill (8-32 X 5/8in.)
91920
Ships in 1 to 2 days
$2.99
$2.75
Add
99 Spring, Compression
26157
Ships in 1 to 2 days
$6.69
$6.16
Add
100 Pin-Throttle Stop And Governor Shaft
93043
Ships in 1 to 2 days
$3.29
$3.03
Add
102 Gasket-Carburetor Body | Included in Carburetor Overhaul Kit-Part No. 295938
27918
Ships in 1 to 2 days
$3.59
$2.95
Add
103 Float-Carburetor
99333
Ships in 1 to 2 days
$11.09
$9.11
Add
104 Pin-Hinge | Included in Carburetor Overhaul Kit-Part No. 295938
230896
Ships in 1 to 2 days
$2.79
$2.57
Add
105 Valve-Fuel Inlet
299096
Ships in 1 to 2 days
$7.19
$5.90
Add
107 Body Assy.-Lower Carburetor
299170
Ships in 1 to 2 days
$96.99
$89.33
Add
108 Valve-Choke
221835
Ships in 1 to 2 days
$6.69
$6.16
Add
109 Shaft/Lever Choke (Manual)
298875 		Unavailable
110 Washer-Thermostat
62899
Ships in 1 to 2 days
$3.49
$3.21
Add
111 Spring-Lever
26155
Ships in 1 to 2 days
$3.69
$3.39
Add
112 Screw
691587
Ships in 1 to 2 days
$4.69
$4.32
Add
113 Nozzle-Carburetor | Included in Carburetor Overhaul Kit-Part No. 295938
390395 		Unavailable
114 Gasket-Nozzle | Included in Carburetor Overhaul Kit-Part No. 295938
691610
Ships in 1 to 2 days
$4.79
$4.41
Add
118 Valve-Needle | Included in Carburetor Overhaul Kit-Part No. 295938
99525
Ships in 1 to 2 days
$9.99
$8.21
Add
118 Valve-Needle | Uses: 292226 Retainer Assembly-Needle Valve 68677 Packing-Needle Valve
391213 		Unavailable
119 Screw, Machine Fill (10-32 X 5/8in.)
90746
Ships in 1 to 2 days
$2.99
$2.75
Add
120 Lockwasher, Zinc Pl
92290
Ships in 1 to 2 days
$2.79
$2.57
Add
121 Carburetor Overhaul Kit
295938
Ships in 1 to 2 days
$29.99
$24.64
Add
160 Cleaner Assembly-Air
296434 		Unavailable
161 Bowl-Air Cleaner
296704 		Unavailable
162 Cover And Filter-Air Cleaner
296270 		Unavailable
163 Gasket-Air Cleaner Mtg. | Included in Gasket Set-Part No. 295970
27907
Ships in 1 to 2 days
$6.19
$5.70
Add
164 Pipe-Air Cl | (For Round Oil Bath Air Cleaner)
295593 		Unavailable
165 Nut, Wing
93453
Ships in 1 to 2 days
$4.69
$4.32
Add
166 Stud-Air Cleaner (9-29/32in. Long)
230639 		Unavailable
167 Gasket-Air Cleaner Stud
66648
Ships in 1 to 2 days
$4.29
$3.95
Add
168 Strap-Air Cleaner Pipe
22832
Ships in 1 to 2 days
$6.19
$5.70
Add
171 Nut, Hex Mach (1/4-28)
92129
Ships in 1 to 2 days
$2.39
$2.20
Add
172 Gasket-Air Cleaner
27906 		Unavailable
180 Tank-Fuel (4 Quart)
290816
Ships in 1 to 2 days
$102.49
$94.39
Add
181 Cap-Fuel Tank
791545
Ships in 1 to 2 days
$9.19
$7.55
Add
182 Bracket-Fuel Tank
220858
Ships in 1 to 2 days
$33.49
$30.84
Add
182 Bracket-Fuel Tank
221906 		Unavailable
183 Strap-Fuel Tank (4 Quart)
291367
Ships in 1 to 2 days
$45.49
$41.89
Add
184 Screw, Machine Fill (1/4-20 X 1-1/2in.)
91257
Ships in 1 to 2 days
$2.99
$2.75
Add
185 Nut, Square (1/4-20)
90970
Ships in 1 to 2 days
$2.79
$2.57
Add
186 Connector, Fuel | For Connector for Metal Fuel Pipe order No. 63377
67218
Ships in 1 to 2 days
$5.79
$4.75
Add
187A Pipe-Fuel
295690 		Unavailable
187 Line-Fuel (13in.)
299942
Ships in 1 to 2 days
$8.79
$8.09
Add
188 Screw, Sem Hex Head (5/16-18 X 3/4)
93535
Ships in 1 to 2 days
$4.39
$4.04
Add
196 Bracket-Fuel Tank
691068
Ships in 1 to 2 days
$20.49
$18.87
Add
198 VALVE-FUEL SHUT OFF(M
592840
Ships in 1 to 2 days
$32.49
$29.92
Add
199 VALVE-FUEL SHUT OFF(M | Includes 293934 Shut-Off Valve
592840
Ships in 1 to 2 days
$32.49
$29.92
Add
240A Filter, Fuel
298090
Ships in 1 to 2 days
$4.69
$3.85
Add
240 Filter Assy.-Fuel
99910
Ships in 1 to 2 days
$19.49
$16.01
Add
240 Filter-Fuel
690612
Ships in 1 to 2 days
$19.49
$16.01
Add
241 Filter-Fuel
690612
Ships in 1 to 2 days
$19.49
$16.01
Add
241 Fuel Filter Cover (Used With Metal Fuel Pipe)
99909 		Unavailable
242 Filter-Fuel
690612
Ships in 1 to 2 days
$19.49
$16.01
Add
243 Screen-Fuel Filter
22547
Ships in 1 to 2 days
$3.69
$3.39
Add
244 Connector, Fuel | (For Flexible Fuel Pipe) For Connector for Metal Fuel Pipe order No. 53029
230318
Ships in 1 to 2 days
$10.89
$10.03
Add
245 Gasket-Fuel Bowl | Included in Gasket Set-Part No. 295970
692190
Ships in 1 to 2 days
$3.89
$3.19
Add
246 Bowl-Fuel Filter
298683
Ships in 1 to 2 days
$11.69
$9.60
Add
247 Yoke-Bowl
691700 		Unavailable
266 Control-Throttle (Disc Type)
291460 		Unavailable
268 Casing-Control Wire | If longer casing is required, specify length in inches; if shorter wire is needed, order No. 65616 and cut to required length.
691025 		Unavailable
269 Wire, Control (78in. Cut To Required Length) | If longer wire is required, specify length in inches; if shorter wire is needed, order No. 26633 and cut to required length.
26633
Ships in 1 to 2 days
$11.59
$10.67
Add
270 Nut
691027
Ships in 1 to 2 days
$9.89
$9.11
Add
271 Lever-Control
691028
Ships in 1 to 2 days
$43.49
$35.74
Add
305 Screw, Sem Hex Head (1/4-20 X 5/8in.)
93158
Ships in 1 to 2 days
$4.89
$4.01
Add
305 Screw-Hex (1/4-20 X 1/2in.)
92666
Ships in 1 to 2 days
$4.89
$4.01
Add
535 FILTER-A/C CARTRIDGE
496047
Ships in 1 to 2 days
$37.99
$31.22
Add
536 Cleaner Assy.-Air
298681 		Unavailable
601 Clamp, Hose (Green)
93053
Ships in 1 to 2 days
$2.69
$2.21
Add
642 Cover-Air Cleaner
497158 		Unavailable
643 Cup-Air Cleaner
280002 		Unavailable
730 Tube-Intake
299384
Ships in 1 to 2 days
$17.29
$15.92
Add
731 Hood-Snow
492291 		Unavailable
732 Screw, Sem Hex Head
93042
Ships in 1 to 2 days
$3.39
$3.12
Add
