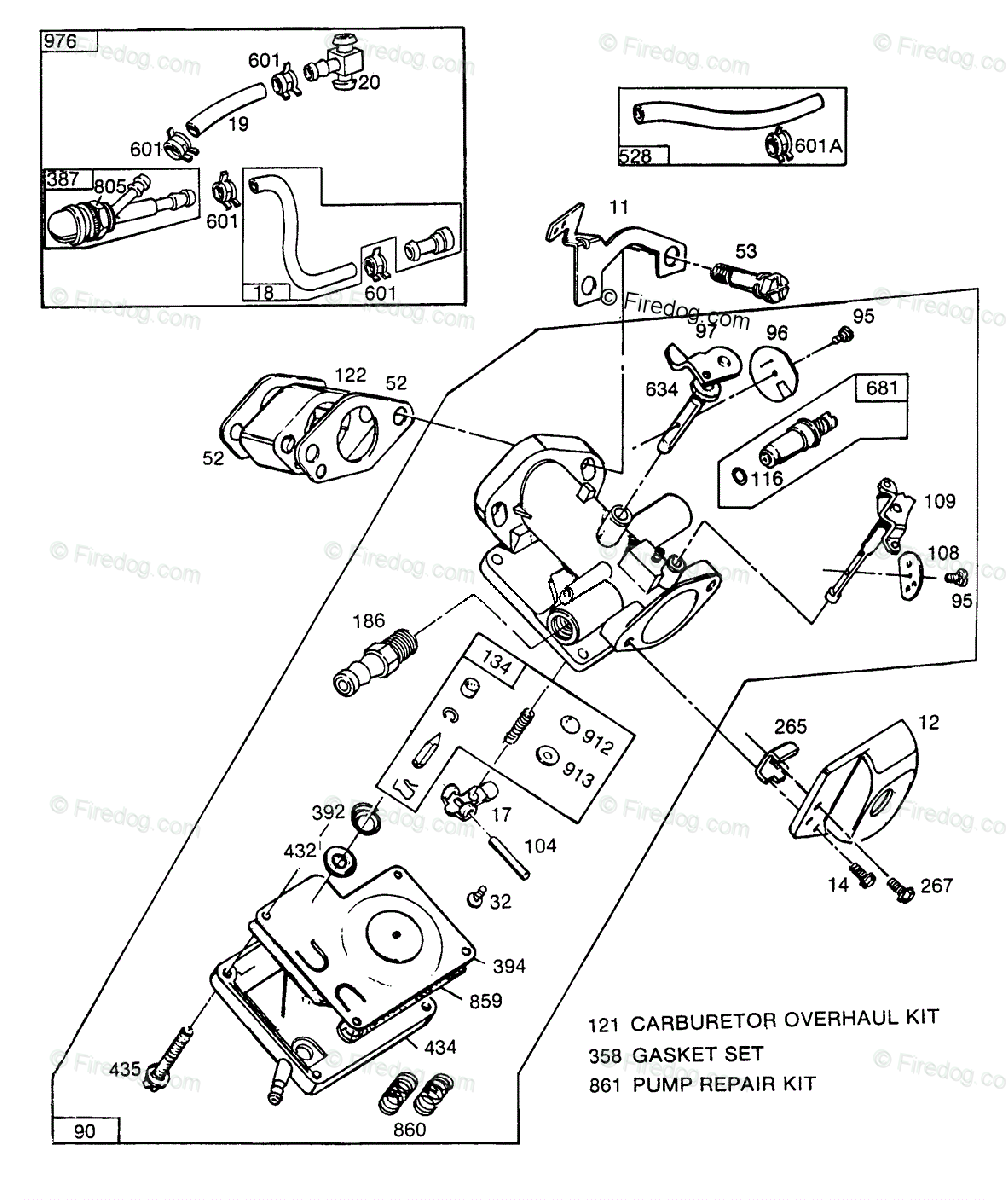

Briggs & Stratton 062032-0651-01 Carburetor Assembly Diagram

Briggs & Stratton
  1. Catalog
  2. Briggs & Stratton
  3. 020000 - 09Z999 Series
  4. 062000 To 062099
  5. 062032-0651-01
  6. Carburetor Assembly

Check Availability

# Description Price Qty
11 Governor Tang
223061
Unavailable
12 Cover-Intake
280603
Unavailable
14 Screw-Hex Head
93969
Ships in 1 to 2 days
$3.09
$2.84
Add
17 Hinge-Inlet Valve
223063
Unavailable
18 Hose-Injector (Includes Filter) (1/4in. O.d.)
399095
Unavailable
19 Tube-Primer (1/4in. O.d.)
280606
Unavailable
20 Connector-Primer Hose
280604
Unavailable
32 Screw-Pan Head (Hinge)
93958
Ships in 1 to 2 days
$2.99
$2.75
Add
52 Gasket-Carburetor Mounting | Included in Gasket Set-Part No. 394493. Carburetor Overhaul Kit-See Ref. 121
271282
Unavailable
53 Screw-Carb. Mtg.
93968
Unavailable
90 Carburetor Assembly (Used With Wet Bulb Primer-Ref. No. 387)
399060
Unavailable
95 Screw, Sem Pan Head (Throttle Valve)
93499
Ships in 1 to 2 days
$2.89
$2.37
Add
96 Valve-Throttle
211203
Ships in 1 to 2 days
$6.19
$5.70
Add
97 Shaft And Lever-Throttle
394343
Unavailable
104 Pin-Hinge | Carburetor Overhaul Kit-See Ref. 121
230896
Ships in 1 to 2 days
$2.79
$2.57
Add
108 Valve-Cover
223591
Unavailable
109 Shaft Lever Assy.-Choke
394344
Unavailable
116 Seal-O
280203
Ships in 1 to 2 days
$4.09
$3.76
Add
121 KIT-CARB OVERHAUL | Used After Code Date 83020713
497301
Unavailable
122 Carburetor Spacer
280312
Unavailable
134 Float Valve Assembly | Carburetor Overhaul Kit-See Ref. 121
394476
Unavailable
186 Connector, Fuel
230318
Ships in 1 to 2 days
$10.89
$10.03
Add
265 Clamp-Casing
690393
Ships in 1 to 2 days
$4.69
$4.32
Add
267 Screw-Clamp Mtg.
93945
Unavailable
358 Gasket Set
394493
Unavailable
387 Primer-Wet Bulb
398908
Unavailable
392 Spring-Fuel Pump Diaphragm | Included in Carburetor Overhaul Kit-See Ref. 121 and Pump Repair Kit See Ref. 861
261565
Ships in 1 to 2 days
$4.99
$4.59
Add
394 Diaphragm | Used Before Code Date 83020813
394345
Ships in 1 to 2 days
$39.49
$32.45
Add
394 Diaphragm | Used After Code Date 83020713
396789
Ships in 1 to 2 days
$40.49
$33.27
Add
432 Cap-Spring | Carburetor Overhaul Kit-See Ref. 121
223065
Unavailable
434 Cover-Diaphragm | Used After Code Date 83020713
212727
Unavailable
434 Cover-Diaphragm | Used Before Code Date 83020813
212457
Unavailable
435 Screw, Hex Head Mac
93955
Ships in 1 to 2 days
$3.39
$3.12
Add
528 Hose-Vacuum
791880
Ships in 1 to 2 days
$10.19
$9.38
Add
601 Clamp, Hose
94171
Ships in 1 to 2 days
$3.49
$3.21
Add
601A Clamp, Hose (Green)
93053
Ships in 1 to 2 days
$2.69
$2.21
Add
634 Washer (Felt) | Carburetor Overhaul Kit-See Ref. 121
270167
Ships in 1 to 2 days
$3.49
$3.21
Add
681 Valve-High Speed (Nylon Body) | Carburetor Overhaul Kit-See Ref. 121
395508
Ships in 1 to 2 days
$6.59
$6.07
Add
805 Nut-Primer Retaining
94189
Unavailable
859 Gasket-Pump Cover | Used Before Code Date 83020813
271330
Ships in 1 to 2 days
$6.99
$6.43
Add
859 Gasket-Pump Cover | Used After Code Date 8302071
271611
Ships in 1 to 2 days
$6.89
$6.34
Add
860 Spring, Valve | Included in Carburetor Overhaul Kit-See Ref. 121 and Pump Repair Kit See Ref. 861
261358
Ships in 1 to 2 days
$5.39
$4.96
Add
861 Pump Repair Kit | Used After Code Date 83020713
396788
Unavailable
861 Pump Repair Kit | Used Before Code Date 83020813
394496
Unavailable
976 Primer Kit-Wet Bulb
399328
Unavailable
